Required Hardware

HW preparation

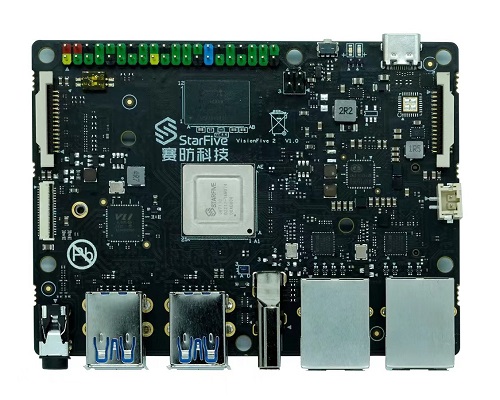

  • VisionFive 2

  • Micro-SD card (32 GB or more)

  • Micro-SD card reader

  • PC with Linux/windows

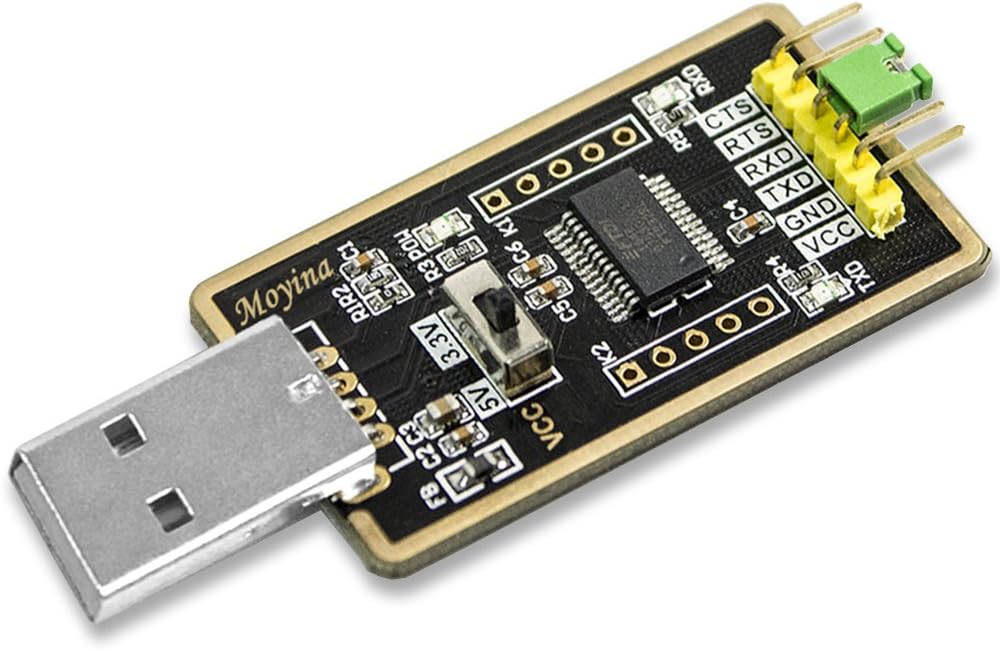

  • USB to Serial Converter (FT232RL)

  • Power adapter(5V 3A)

  • USB Type-C cable

VisionFive 2 Board FT232 USB to UART

Using a USB to Serial Converter

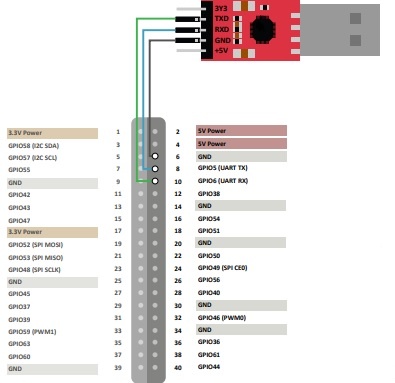

usb uart uart_wiring

Connect to the serial device by typing the following command

sudo picocom -b 115200 /dev/ttyUSB0

Sample serial output

StarFive #
U-Boot SPL 2021.10 (Feb 12 2023 - 18:15:33 +0800)
DDR version: dc2e84f0.
Trying to boot from SPI

OpenSBI v1.2
____                    _____ ____ _____
/ __ \                  / ____|  _ \_   _|
| |  | |_ __   ___ _ __ | (___ | |_) || |
| |  | | '_ \ / _ \ '_ \ \___ \|  _ < | |
| |__| | |_) |  __/ | | |____) | |_) || |_
\____/| .__/ \___|_| |_|_____/|____/_____|
        | |
        |_|

Platform Name             : StarFive VisionFive V2
Platform Features         : medeleg
Platform HART Count       : 5
Platform IPI Device       : aclint-mswi
Platform Timer Device     : aclint-mtimer @ 4000000Hz
Platform Console Device   : uart8250
Platform HSM Device       : jh7110-hsm
Platform PMU Device       : ---
Platform Reboot Device    : pm-reset
Platform Shutdown Device  : pm-reset
Firmware Base             : 0x40000000
Firmware Size             : 292 KB
Runtime SBI Version       : 1.0

Domain0 Name              : root
Domain0 Boot HART         : 1
Domain0 HARTs             : 0*,1*,2*,3*,4*
Domain0 Region00          : 0x0000000002000000-0x000000000200ffff (I)
Domain0 Region01          : 0x0000000040000000-0x000000004007ffff ()
Domain0 Region02          : 0x0000000000000000-0xffffffffffffffff (R,W,X)
Domain0 Next Address      : 0x0000000040200000
Domain0 Next Arg1         : 0x0000000042200000
Domain0 Next Mode         : S-mode
Domain0 SysReset          : yes

Boot HART ID              : 1
Boot HART Domain          : root
Boot HART Priv Version    : v1.11
Boot HART Base ISA        : rv64imafdcbx
Boot HART ISA Extensions  : none
Boot HART PMP Count       : 8
Boot HART PMP Granularity : 4096
Boot HART PMP Address Bits: 34
Boot HART MHPM Count      : 2
Boot HART MIDELEG         : 0x0000000000000222
Boot HART MEDELEG         : 0x000000000000b109


U-Boot 2021.10 (Feb 12 2023 - 18:15:33 +0800), Build: jenkins-VF2_515_Branch_SDK_Release-24

CPU:   rv64imacu
Model: StarFive VisionFive V2
DRAM:  4 GiB
MMC:   sdio0@16010000: 0, sdio1@16020000: 1
Loading Environment from SPIFlash... SF: Detected gd25lq128 with page size 256 Bytes, erase size 4 KiB, total 16 MiB
OK
StarFive EEPROM format v2

--------EEPROM INFO--------
Vendor : StarFive Technology Co., Ltd.
Product full SN: VF7110B1-2253-D004E000-40000984
data version: 0x2
PCB revision: 0xb2
BOM revision: A
Ethernet MAC0 address: 6c:cf:39:00:6e:30
Ethernet MAC1 address: 6c:cf:39:00:6e:31
--------EEPROM INFO--------

In:    serial@10000000
Out:   serial@10000000
Err:   serial@10000000
Model: StarFive VisionFive V2
Net:   eth0: ethernet@16030000, eth1: ethernet@16040000
switch to partitions #0, OK
mmc1 is current device
found device 1
bootmode flash device 1
399 bytes read in 4 ms (96.7 KiB/s)
Importing environment from mmc1 ...
Can't set block device
Hit any key to stop autoboot:  0
Can't set block device
libfdt fdt_check_header(): FDT_ERR_BADMAGIC
Retrieving file: /boot/extlinux/extlinux.conf
Can't set block device
Error reading config file
StarFive #
